Project Description

Brief Introduction of Shisha Charcoal Machine

Shisha charcoal machine is specially designed for making shisha/hookah charcoal briquettes. It is a mechanical stamping machine for compress the charcoal powder into tablet shape or cubic shape briquettes. Materials are usually from natural wood charcoal and coconut shell charcoal.

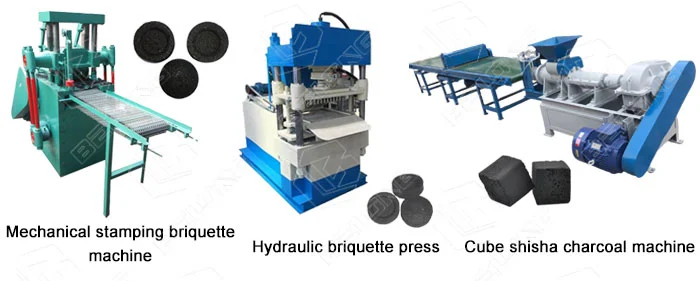

Shisha charcoal machine

What is shisha charcoal

The main application of hookah charcoal is for heating the shisha tobacco to produce smoke. Once the shisha charcoals are ignited they are placed on the top of the foil on your hookah bowl. The heat produced by the charcoal will cook the shisha tobacco to produce sweet sweet clouds.
The shapes of shisha charcoal usually are tablet shape and cubic shape. The diameter of the tablet briquettes is usually 40 or 44mm. The size of cubic shape shisha charcoal is usually 22mm or 26mm. If you want to produce other shapes or sizes of briquettes, we can customize the mold for you.

Different shape shisha charcoals

How the shisha charcoal tablet press work

The whole set machine is driven by an electric motor. The prepared charcoal (mix with water, binder, instant ignite additives, etc) is poured into the hopper of the shisha charcoal machine and filled into the mold automatically. Under the punching pressure, charcoal powder is pressed into shaped shisha charcoal briquettes. There is also a mesh belt conveyor with the machine. Each time the briquetting is finished, the conveyor will move forward and take the shisha charcoals out.

Technical parameters

Max. pressure200KN
Max. Diameter450mm
Max. Feeding Depth50mm
Max. Thickness25mm
Capacity9000—12000pcs/hr
Power5.5kW
Weight3200kg
Dimension620*900*1500mm
Note: the shisha charcoal machine can be customized according to user requirements
