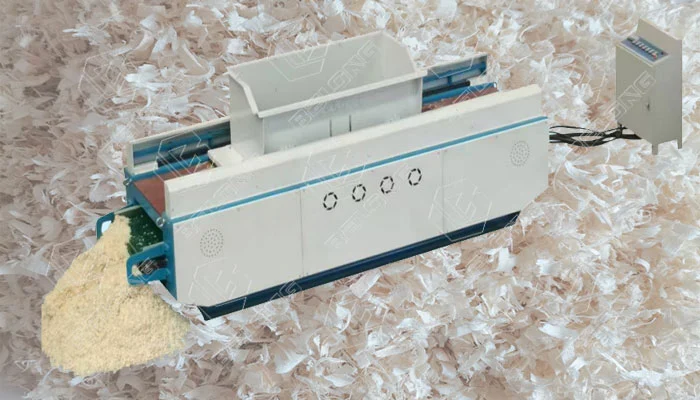

Our Multi-Shaft Wood Shaving Machine is an industrial-grade equipment designed to convert wood logs, tree branches, slab edges, and wood waste into high-quality wood shavings automatically. Equipped with a powerful multi-motor drive system and an integrated belt conveyor, this machine offers high efficiency, low energy consumption, and uniform shaving thickness.

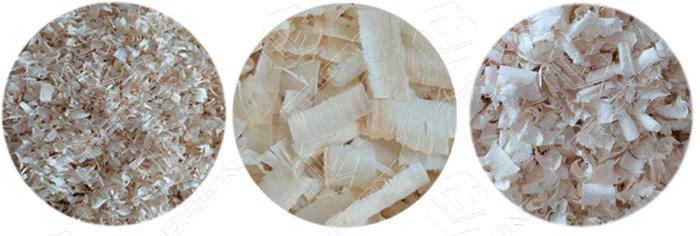

The output wood shavings are highly commercially valuable and widely used in animal bedding (horse stables, poultry, pets), particleboard manufacturing, eco-friendly packaging material, and biomass fuel production.
Features & Advantages
- 1
Suitable for all kinds of hardwoods and softwoods, including fruit trees, poplar, birch, pine, etc.
- 2
Both dry and fresh wet wood can be processed.
- 3
The thickness of the wood shavings is adjustable, and their shape can be customized.
- 4
Optional equipment includes a feeder, a wood shavings dryer, a screening machine, and a packaging machine to form a wood shavings production line.
- 5
Compared to a disc-type wood shaving machine, it has a higher output but also a higher price.
Working video
Technical parameters
| Model | BL1350-2 | BL1460-4 | BL1490-4 | BL2690-6 |
|---|---|---|---|---|
| Power | 18kW | 35kW | 53kW | 79kW |
| Feeding inlet size | 1.3*0.5m(L*W) | 1.4*0.6m(L*W) | 1.4*0.9m(L*W) | 2.6*0.9m(L*W) |
| Capacity | 400kg/h | 800-1000kg/h | 1500-2000kg/h | 3000kg/h |
| Blade quantity | 2pcs | 4pcs | 4pcs | 6pcs |
| Dimension | 3.5*0.95*1.35m | 3.9*1.35*1.4m | 5.3*2.1*2.2m | 7.5*2.2*2.4m |
| Weight | 1700kg | 2300kg | 5200kg | 8500kg |
| Motor voltage | 380V 50Hz 3Phases or customized | 380V 50Hz 3Phases or customized | 380V 50Hz 3Phases or customized | 380V 50Hz 3Phases or customized |
